Émonda SL 7 Disc is an ultralight carbon road bike that's aerodynamically designed for more free speed while hammering flats and flying up climbs. An electronic drivetrain, lightweight carbon wheels, and other race-worthy parts make this bike a great choice for fast roadies looking for every performance advantage.
Specifications
*spec applies to all sizes unless otherwise noted
Frameset
Frame：Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Fork：Emonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Frame fit：H1.5 Race
Wheels
Wheel front：Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
Wheel rear：Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, Shimano 11-speed freehub, 142x12mm thru axle
Tire：Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25c
Max tire size：30c

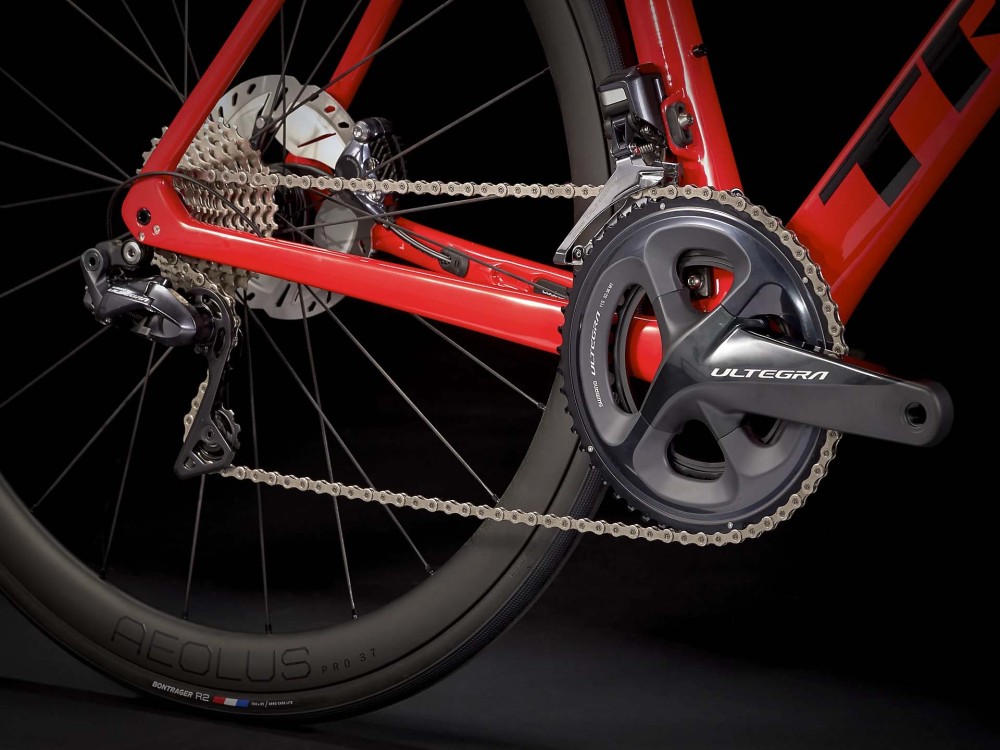

Drivetrain
Shifter：Shimano Ultegra Di2, R8070, 11-speed
Front derailleur：Shimano Ultegra R8050 Di2, braze-on
Rear derailleur：Shimano Ultegra R8050 Di2, short cage, 30T max cog
*Crank：Size: 47
Shimano Ultegra R8000, 52/36, 165mm length
Size: 50, 52
Shimano Ultegra R8000, 52/36, 170mm length
Size: 54, 56, 58
Shimano Ultegra R8000, 52/36, 172.5mm length
Size: 60, 62
Shimano Ultegra R8000, 52/36, 175mm length
Bottom bracket：Praxis, T47 threaded, internal bearing
Cassette：Shimano Ultegra R8000, 11-30, 11 speed
Chain：Shimano Ultegra HG701, 11-speed
Max chainring size：1x: 50T, 2x: 53/39T
Components
Saddle：Bontrager Aeolus Comp, steel rails, 145mm width
*Seatpost：Size: 47, 50, 52, 54
Bontrager carbon seatmast cap, 20mm offset, short length
Size: 56, 58, 60, 62
Bontrager carbon seatmast cap, 20mm offset, tall length
*Handlebar：Size: 47, 50
Bontrager Pro VR-C, OCLV Carbon, 31.8mm, Di2 routing, 100mm reach, 124mm drop, 38cm width
Size: 52
Bontrager Pro VR-C, OCLV Carbon, 31.8mm, Di2 routing, 100mm reach, 124mm drop, 40cm width
Size: 54, 56, 58
Bontrager Pro VR-C, OCLV Carbon, 31.8mm, Di2 routing, 100mm reach, 124mm drop, 42cm width
Size: 60, 62
Bontrager Pro VR-C, OCLV Carbon, 31.8mm, Di2 routing, 100mm reach, 124mm drop, 44cm width
Handlebar tape：Bontrager Supertack Perf tape
*Stem：Size: 47
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: 50
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 52, 54
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 56
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: 58, 60, 62
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm length

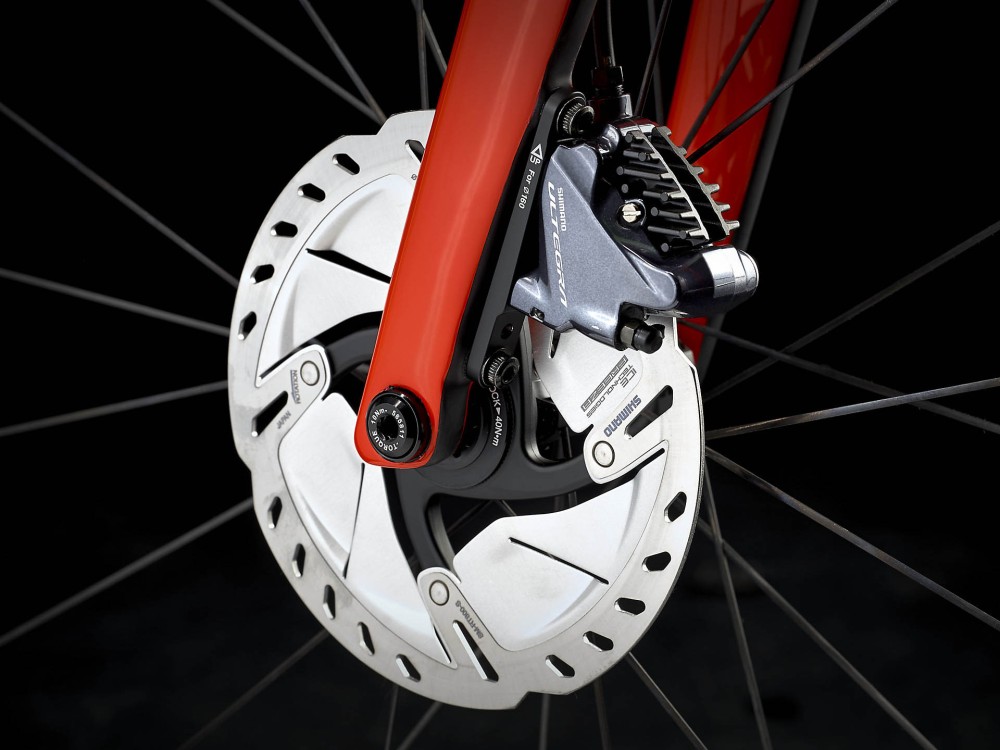

Brake：Shimano Ultegra hydraulic disc, flat mount
Brake rotor：Shimano RT800, centerlock, 160mm
Weight
Weight：56 - 7.74 kg / 17.06 lbs
Weight limit：This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Sizing & fit

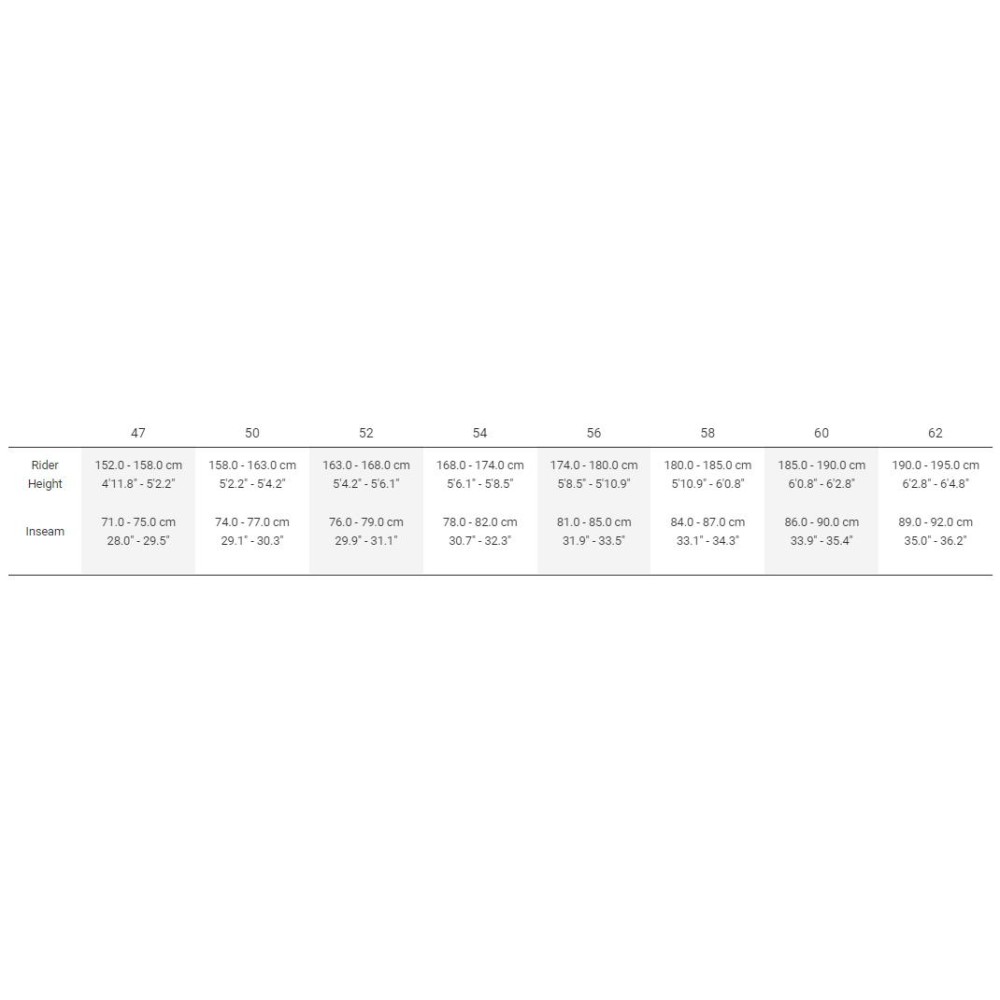

The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike. The best way to find your perfect fit is to consult the experts at your local retailer.
