Specifications
*spec applies to all sizes unless otherwise noted
Frameset

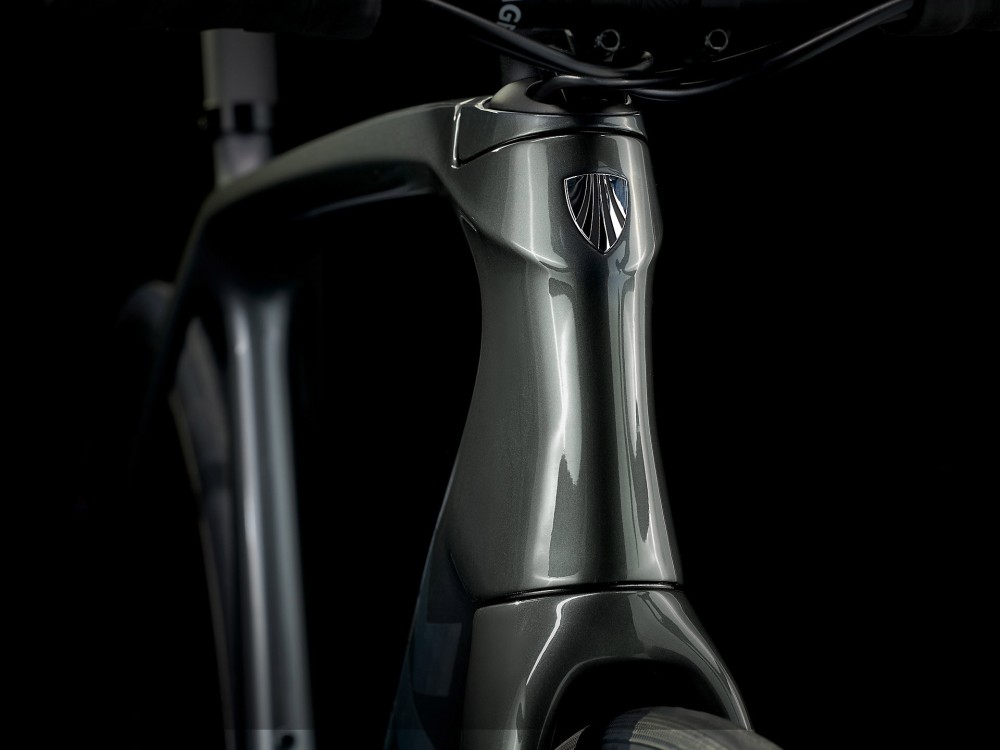

Frame：Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimization, tapered head tube, internal routing, DuoTrap S compatible, flat mount disc, 142x12mm thru axle
Fork：Emonda SL full carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm thru axle
Frame fit：H1.5 Race
Wheels
Wheel front：Bontrager Paradigm Disc, Tubeless Ready, 20mm rim width, 100x12mm thru axle
Wheel rear：Bontrager Paradigm Disc, Tubeless Ready, 20mm width, Shimano 11-speed freehub, 142x12mm thru axle
Skewer front：Bontrager Switch thru axle, removable lever
Skewer rear：Bontrager Switch thru axle, removable lever
Rim：Bontrager Paradigm Comp, Tubeless Ready, 24-hole, 21mm width, presta valve
Tire：Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x28c
Max tire size：30c
Drivetrain
*Shifter：Size: 47, 50, 52
Shimano Ultegra R8025, short-reach lever, 11 speed
Size: 54, 56, 58, 60, 62
Shimano Ultegra R8020, 11-speed
Front derailleur Shimano Ultegra R8000, braze-on
Rear derailleur Shimano Ultegra R8000, short cage, 30T max cog

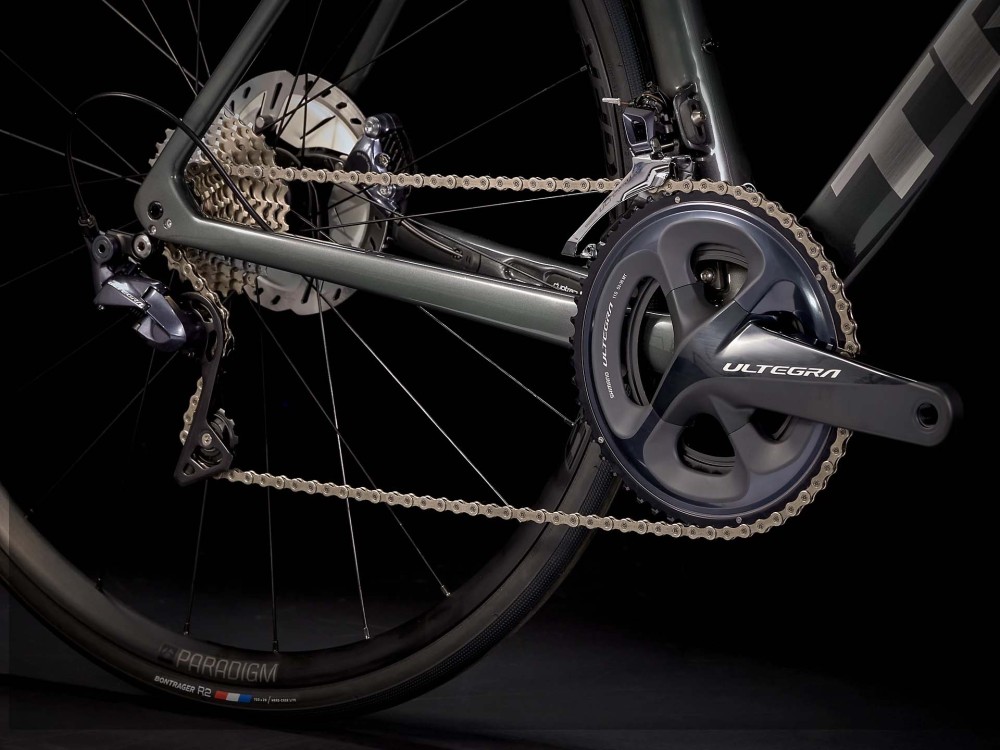

*Crank：Size: 47
Shimano Ultegra R8000, 52/36, 165mm length
Size: 50, 52
Shimano Ultegra R8000, 52/36, 170mm length
Size: 54, 56, 58
Shimano Ultegra R8000, 52/36, 172.5mm length
Size: 60, 62
Shimano Ultegra R8000, 52/36, 175mm length
Bottom bracket：Praxis, T47 threaded, internal bearing
Cassette：Shimano Ultegra R8000, 11-30, 11 speed
Chain：Shimano Ultegra HG701, 11-speed
Max chainring size：1x: 50T, 2x: 53/39T
Components
Saddle：Bontrager Aeolus Comp, steel rails, 145mm width
*Seatpost：Size: 47, 50, 52, 54
Bontrager carbon seatmast cap, 20mm offset, short length
Size: 56, 58, 60, 62
Bontrager carbon seatmast cap, 20mm offset, tall length
*Handlebar：Size: 47, 50
Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 38cm width
Size: 52
Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 40cm width
Size: 54, 56, 58
Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
Size: 60, 62
Bontrager Elite VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
Handlebar tape：Bontrager Supertack Perf tape

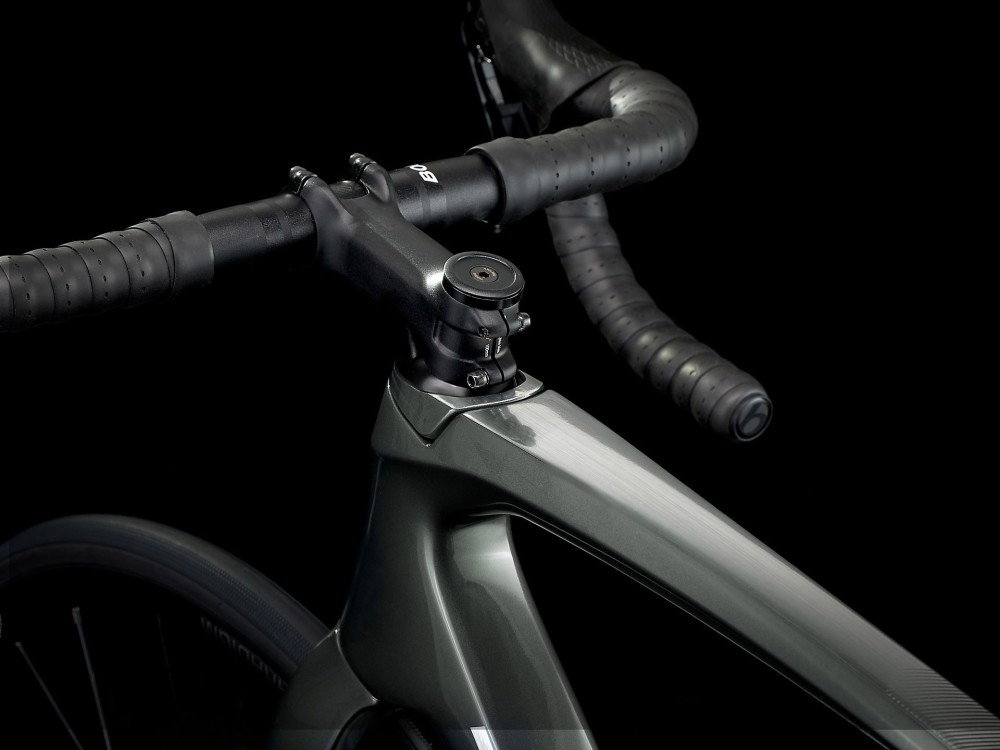

*Stem：Size: 47
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 70mm length
Size: 50
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 80mm length
Size: 52, 54
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 90mm length
Size: 56
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 100mm length
Size: 58, 60, 62
Bontrager Pro, 31.8mm, Blendr compatible, 7 degree, 110mm length

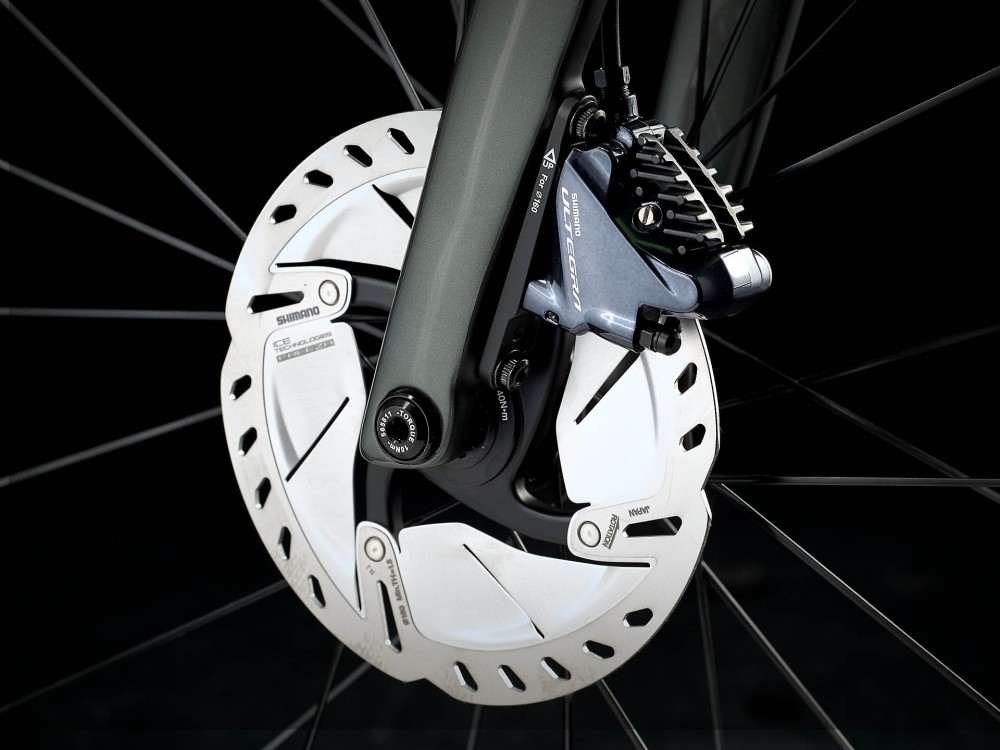

Brake：Shimano Ultegra hydraulic disc, flat mount
Brake rotor：Shimano RT800, centerlock, 160mm
Weight
Weight：56 - 8.25 kg / 18.18 lbs
Weight limit：This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg).
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, and materials.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
Sizing & fit

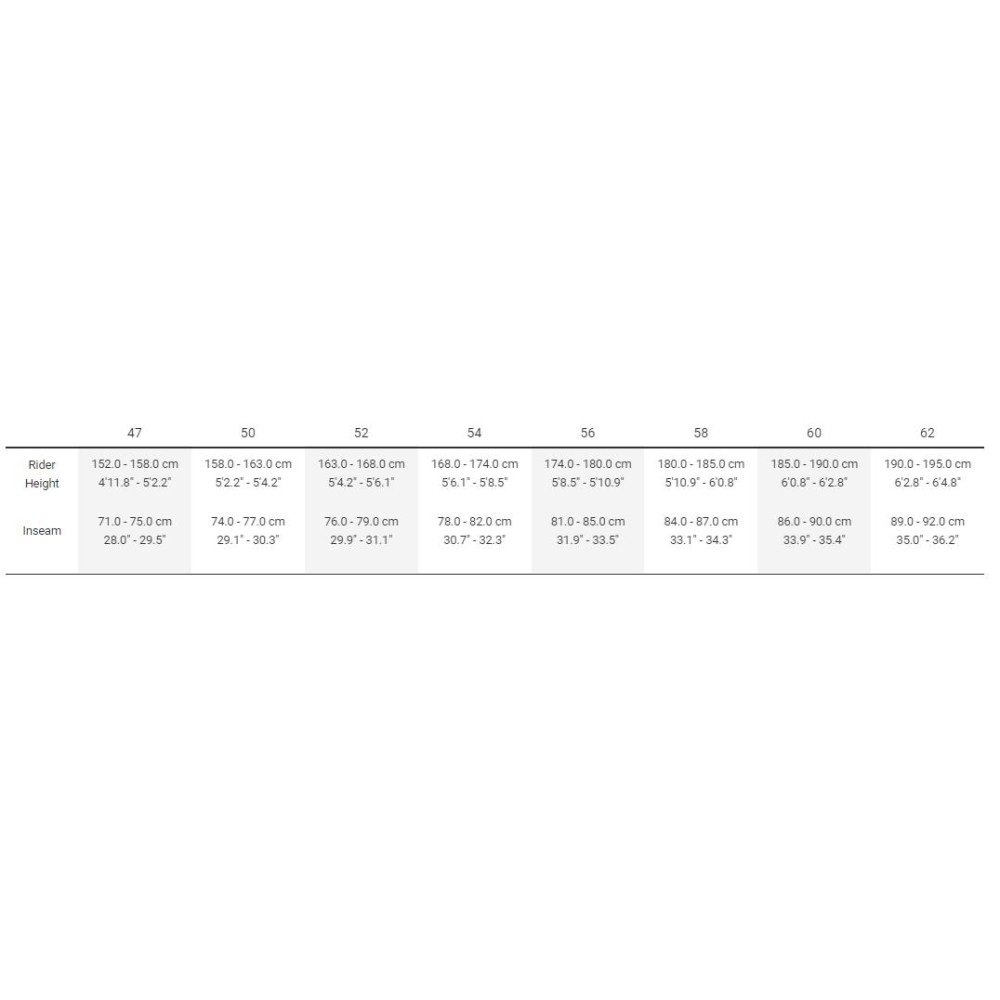

The charts below show our recommended sizes based on height, but there are some other factors, like arm and leg length, that determine a great fit. That’s why you’ll see some overlap in our recommendations. Not every rider who’s 5´8˝, for example, will fit on the same size bike. The best way to find your perfect fit is to consult the experts at your local retailer.
